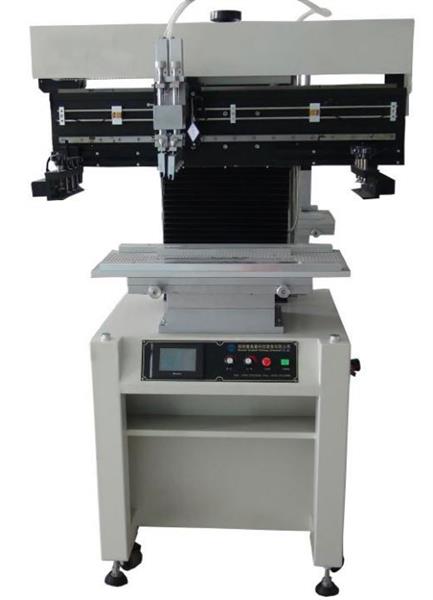

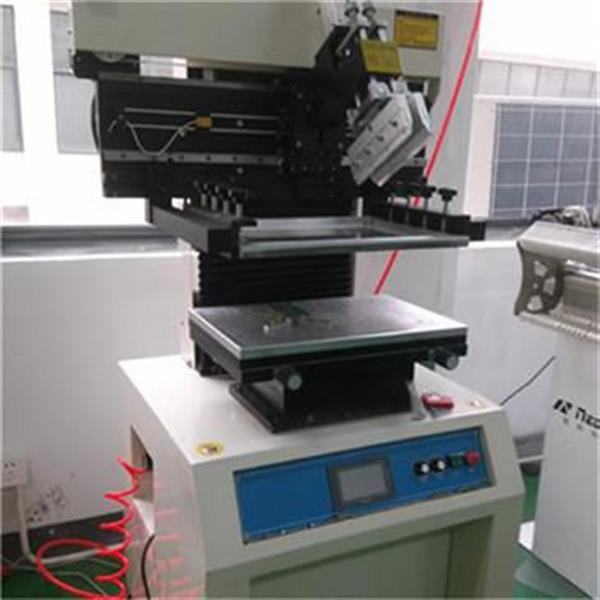

Product Details
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.

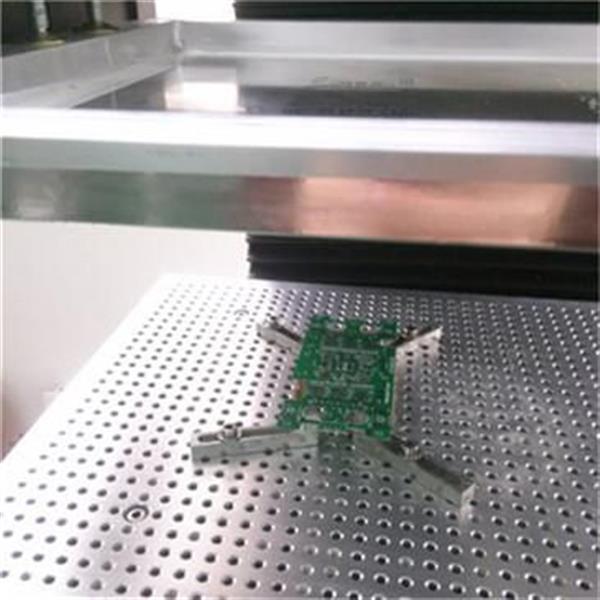

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Specifications:
|
Model
|
YS350
|
|
PCB size
|
400*240mm
|
|
Printing area
|
500*320mm
|
|
PCB fixed system
|
Pin positioning
|
|
Frame size
|
L(550-650)*W(370-470)
|
|
Adjusting for table
|
front/rear±10mm，left/right±10mm
|
|
Printing Accuracy
|
0.2-2.0mm
|
| Air source |
4-6kg/c㎡ |
|
Power supply
|
AC220V 50HZ
|
|
Printing Accuracy
|
±0.02mm
|
|
Dimension
|
L800*W700*H1700
|
| Gross weight |
280KG |
