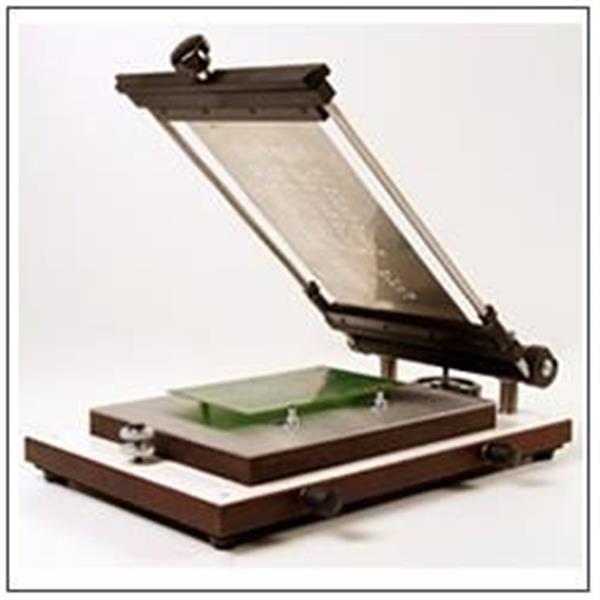

SD300 Stencilprinter max. stencil size 340 x 230 mm.
Technical information
• Dimensions: 520 x 280 x 95 mm(L x W x H)
• Max. PCB: 220 x 320mm
• Max. Stencil:230 x 340mm
• Weight: 9Kg
Description
• Manual operated stencil printer
• Stencils do not need mounting holes.
• Fixing a stencil is fast and easy, no heating of the stencil is required.
• Positioning of PCB’s is simple with the use of magnetic placeholders.
• The stencil printer can be used for single as well as double sided PCB’s. Even if there are already components on one side.
• Accurate X, Y and Rotation alignment of the PCB table.
