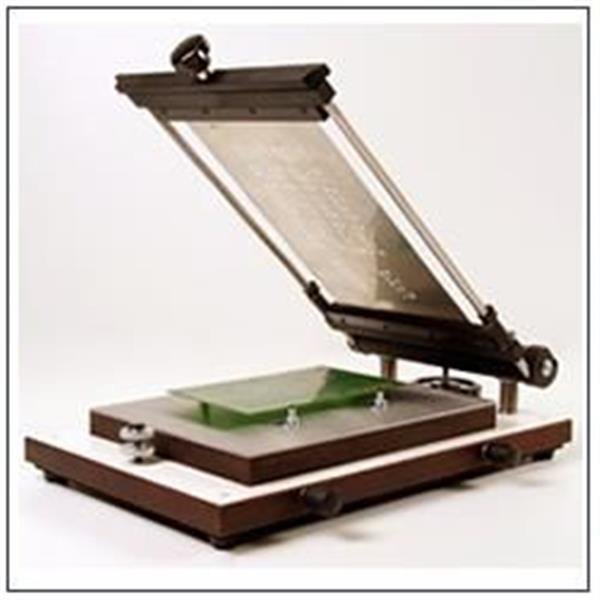

SD360-U Stencilprinter max. stencil size 380 x 270mm.
Technical information
• Dimensions: 510 x 610 x 140 mm(L x W x H)
• Max. PCB: 260 x 360mm
• Max. Stencil:275 x 375mm
• Weight: 17Kg
Description
• Manual operated stencil printer
• Stencils do not need mounting holes.
• Fixing a stencil is fast and easy, no heating of the stencil is required.
• Positioning of PCB’s is simple with the use of magnetic placeholders.
• The stencil printer can be used for single as well as double sided PCB’s. Even if there are already components on one side.
• Accurate X, Y and Rotation alignment of the PCB table.
