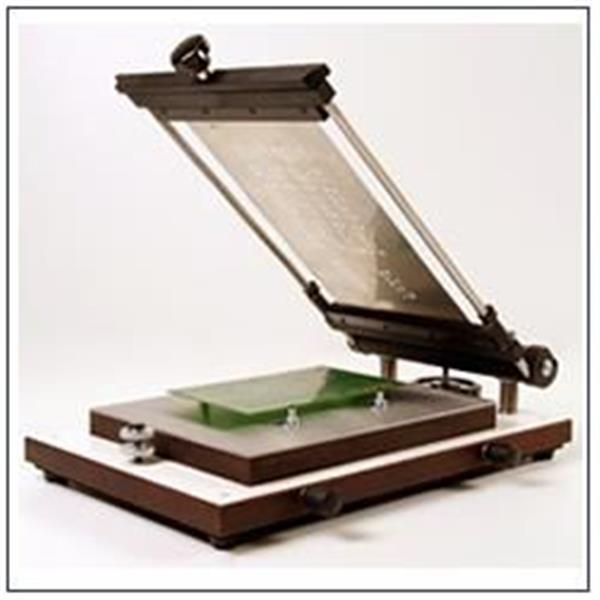

SD240 Stencilprinter max. stencil size 270 x 190mm
Technical information
• Dimensions: 240 x 370 x 110 mm(L x W x H)
• Max. PCB: 180 x 240mm
• Max. Stencil:185 x 275mm
• Weight: 7Kg
Description
• Manual operated stencil printer
• Stencils do not need mounting holes.
• Fixing a stencil is fast and easy, no heating of the stencil is required.
• Positioning of PCB’s is simple with the use of magnetic placeholders.
• The stencil printer can be used for single as well as double sided PCB’s. Even if there are already components on one side.
• Accurate X, Y and Rotation alignment of the PCB table.
