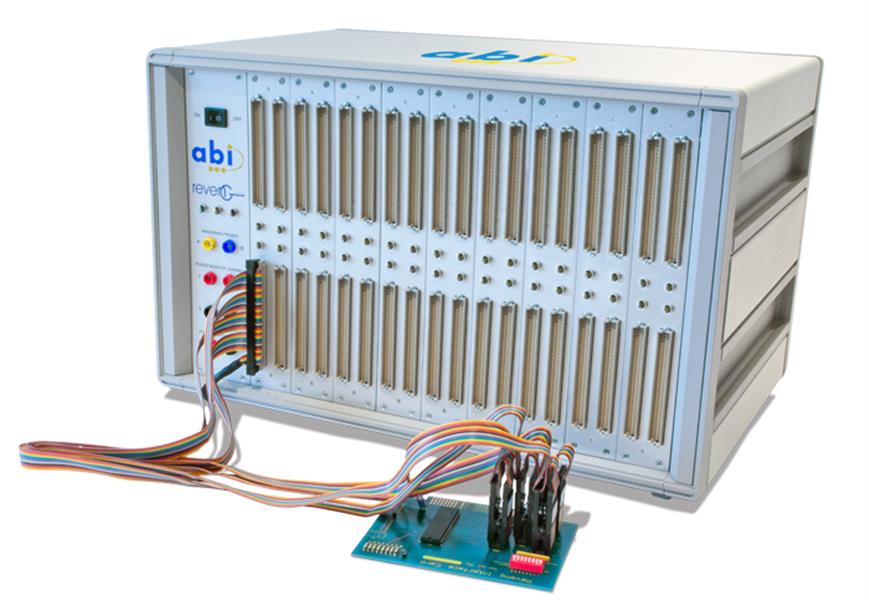

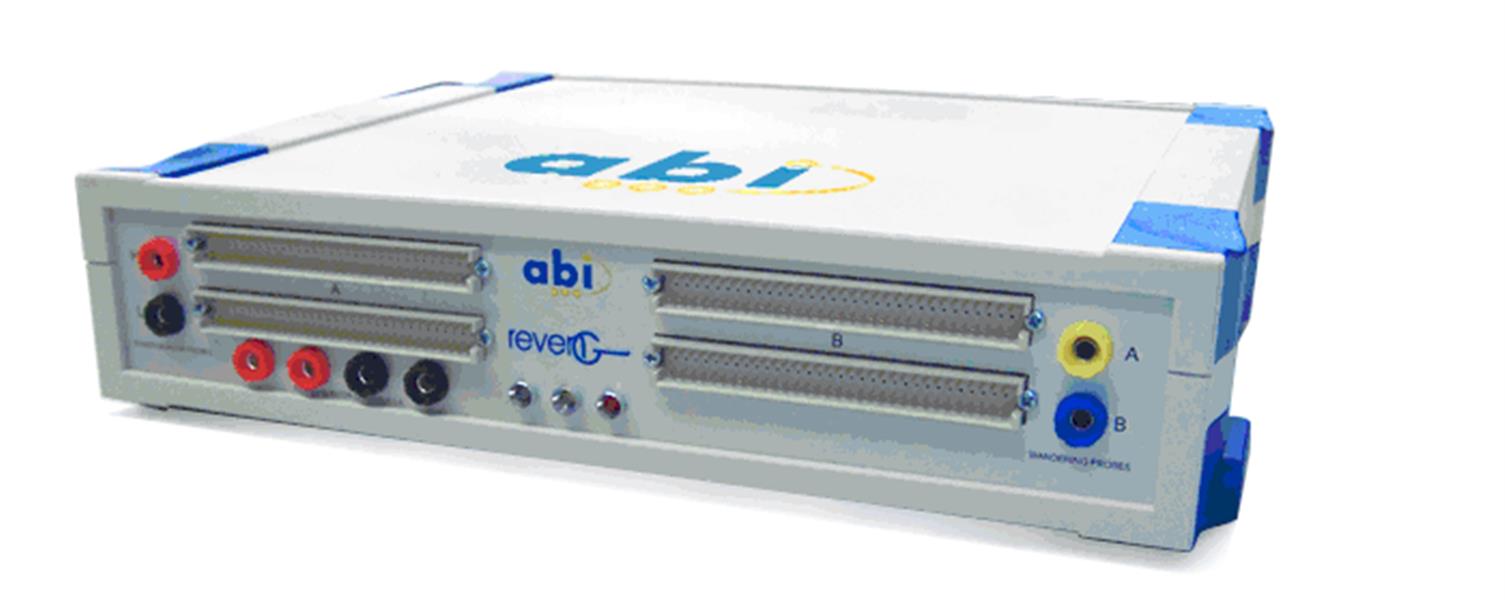

RevEng offers an effective method of creating professional quality circuit diagrams from a sample board. The RevEng system comprises a PC controlled continuity measuring hardware system, SYSTEM 8 Ultimate control software and EdWin XP, a fully featured CAD package.
RevEng learns the connectivity of a sample circuit then produces a NetList (a list of the components and connections). The NetList is imported into EdWin XP to create professional quality circuit diagrams.
|
