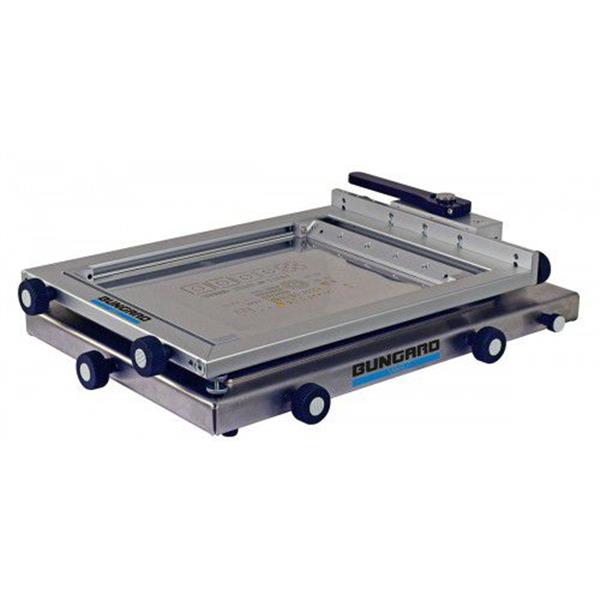

The StenPrint3000 is a manual printing system with a stable base for a high print quality. The solid construction provides clean and reproducible pressure with simple handling, even with small components and fine structures down to 0.5 mm.
It is ideally suited for the production of prototypes and small series.
In the basic model, one-sided and doublesided printed circuit boards can be printed with the help of the magnetic circuit board holders.
For this purpose, the circuit boards are fixed on the base plate and supported by the magnetic circuit board holders. By means of rotary knobs, the print alignment can be performed quickly and easily in X-Y and Theta axis.
A parallel lift ensures a clean separation of the printed circuit board and stencil and guarantees a perfect print image.
For double-sided printing you can fix the pcb with the magnetic pcb-holders (this is mandatory when using the universal stencil clamping frame)
Thông số kỹ thuật:
|
Kích thước (LxWxH):
|
640 x 400 x 150 mm lid closed
|
|
Floor space:
|
545 x 360 mm |
|
Kích thước khung:
|
max. 460 x 30 x 355 mm |
|
Bàn làm việc:
|
max. 390 x 290 mm |
|
Dải điều chỉnh X / Y:
|
+/- 7.5 mm |
|
Góc xoay:
|
+/- 3° |
|
Chỉnh song song:
|
2 mm |
|
Trọng lượng:
|
approx. 15 kg plus options |
|
Với khung stencil
|
|
|
Kích thước tiêu chuẩn:
|
max. 420 x 320 mm |
|
Kích thước PCB:
|
max. 380 x 280 mm |
|
Với khung Stencil
|
|
|
Kích thước tiêu chuẩn:
|
max. 360 x 280 mm |
|
Kích thước PCB:
|
max. 330 x 270 mm |
|
Với bộ nam châm kẹp cho in PCB 2 mặt
|
|
|
Chiều cao bên dưới PCB:
|
max. 18 mm |
Variations
Three types of stencil supports are available.
|
Stencil holder frame (option)
For the simplest of tasks, there is the universal stencil holder frame in which the stencils can be easily clamped without tension.
|
Stencil clamping frame / Quick action frame (standard)
Optimal is the use of the universal stencil clamping frame. Various stencil sizes canbe used here. The tensioning is carried out from two sides. No perforation of the stencil is required.
|
Mounting rail (option)
The third option is a mounting rail for the use of fixed aluminum frames or common quick-release systems.
|
 |
 |
 |
 |
|
 |
| magnetic pcb-holders |
|
squeegee |
Delivery:
Stencil clamping frame / Quick action frame
Squeegee
Spatula
Squeeze bottle, e.g. for cleaners
Magnetic feet (8 x board holders, 4 x board supports)
