Product introduction

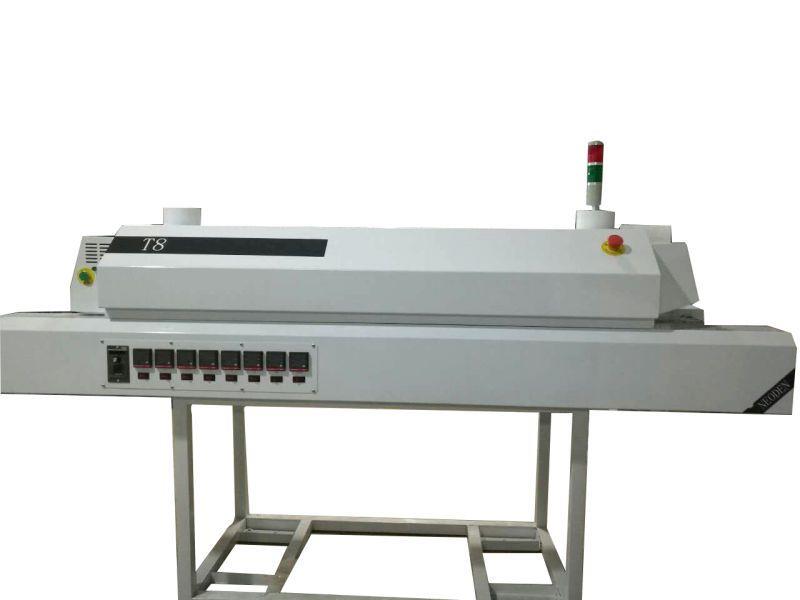

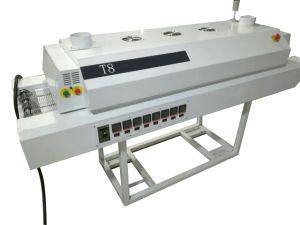

Reflow oven T-8
Feature:
1) T-8 reflow oven worked with hot wind to solder PCB, support most normal components, LED and kinds of IC.
2) Crawler-type structure matched with eight heating zones can make inside temperature more accurate and well-proportioned, just need 15-20min to reach the working temperature.
3) Using AC motor to drive the conveyor belt, chain type transmission way. Speed adjustment is controlled by automatic electronic analog switch, which sensitivity no more than 1 degree,control accuracy ±10mm/min.
Parameter:
|
Length*Width*Height
|
2100*700*700mm
|
|
Peak Power
|
12KW
|
|
Working Power
|
5KW
|
|
Input Voltage
|
220/380V
|
|
Conveyor Width
|
300mm
|
|
Standard Max Height
|
20mm
|
|
Customized Max height
|
55mm
|
|
Max Speed of Conveyor
|
1200mm
|
|
Packing Size
|
2200*800*650mm
|
|
Gross Weight
|
220kg
|
