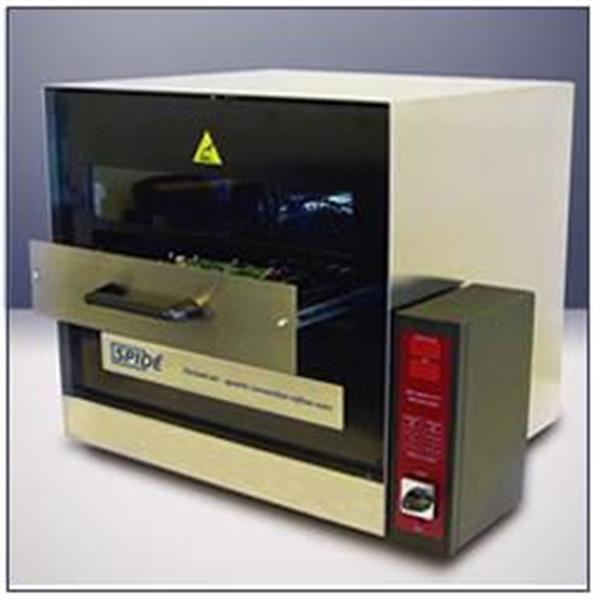

HA08 forced air convection/quartz reflow oven, 440 x 360mm
Technical information
• Power req.: 208/240 V1 phase 50/60 Hz.
• Rated power max. 3950 W.
• Max. Substrate surface: 440 mm x 360 mm.
• Number of heating zones: 2, microprocessor controlled.
• Preheat time:0-999 sec.
• Preheat temp: 60-160°C.
• Reflow Time: 0-999 sec.
• Reflow temp: 90-300°C.
• Heat up time to thermal stabilization: approx 10 min.
• Net weight: 34 kg
All specifications are subject tot change without notice.
Warranty: 12 months.
Connection inert gas N2
