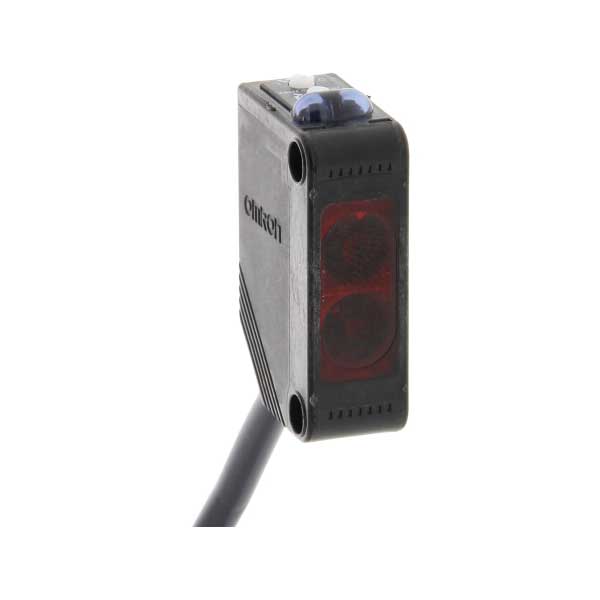

Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (860 nm)

Shape    Square type
Sensing method    Diffuse-reflective
Sensing distance    White paper 300 x 300 mm: 1 m
Differential distance    20% max. of sensing distance
Light source    Infrared LED (860 nm)
Power supply voltage    12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption    30 mA max.
Control output    NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 100 mA)
Operation mode    Light-ON/Dark-ON selectable
Protective circuit    Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time    Operate or reset: 1 ms max.
Sensitivity setting    Single-turn adjustment
Ambient illuminance    Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating)    -25 to 55 ℃ (with no icing)
Ambient temperature range (Storage)    -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating)    35 to 85 % (with no condensation)
Ambient humidity range (Strage)    35 to 95 % (with no condensation)
Insulation resistance    20 MΩ min. (500 VDC megger)
Dielectric strength    1000 VAC 50/60 Hz 1 min
Vibration resistance    Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance    Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection    IEC: IP67
Connection method    Pre-wired models (Cable length 2 m)
Indicator    Operation indicator (orange), Stability indicator (green)
Weight    Package: Approx. 65 g
Accessories    Instruction manual
Material    Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
