Specification
| Max applicable PCB |
370mm*390mm |
| Placement head quantity |
2 |
| Max mounting capability |
10000 PCS/h |
| Positioning accuracy |
±0.03mm |
| Max applicable height |
5mm |
| Max movement speed |
2M/S |
| Applicable Components |
0402-5050，SOP, TQFP, IC |
| Components supply configuration |
Tape reel, bulk packaged (IC),tube packaged(IC) |
| Tape width |
8mm, 12mm, 16mm, 24mm |
| Feeders |
57 |
| External Dimension |
L 870mm×W 640mm×H 336mm |
| Vacuum pump |
-92KPA (Mute type pump) |
| Vacuum pump quantity |
3 (Built-in) |
| Power supply |
220V, 50Hz （convertible to 110V） |
| Average working power |
220V/160W |
| G.W |
70KG (N.W: 45KG) |
| Packing size |
L 93cm×W 93cm×H 48cm |
2.Characters:

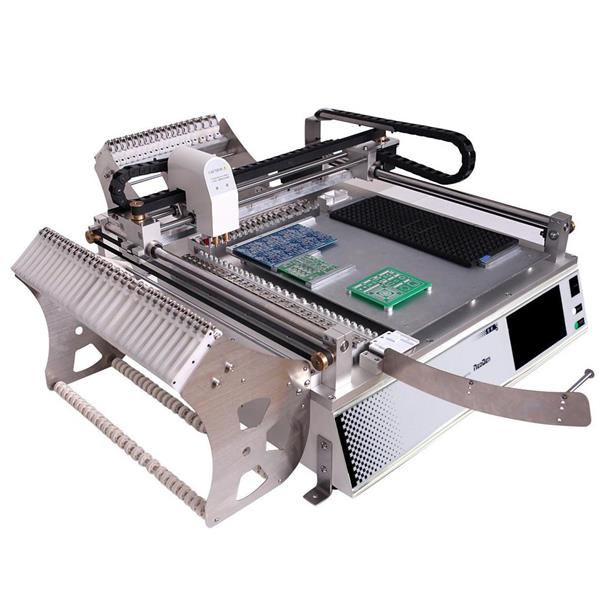

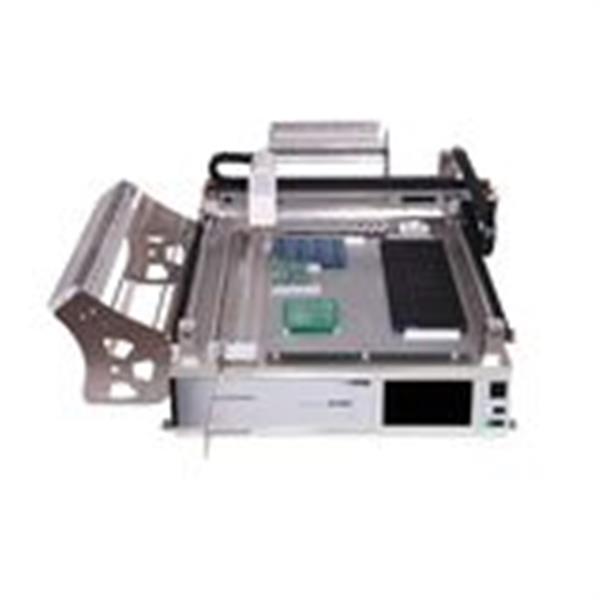

The NeoDen third generation desktop pick and place machine TM245P is a model with completely independent intellectual property, which adopted the latest research and development of technology. Below are the new features of TM245P compare to the second-generation models TM220A and TM240A:
1. Automatic discharging device with electronic magnetic pressure type gear
2. Vibration feeder that can support to mount components packaged by tubes
3. Developed a new generation high-speed drive system (equivalent to servo system)
4. Mechanical correction for IC mounting
5. Automatic recover function of step out
6. Flexible PCB positioning function
Fine-pitch IC correctional device: simple structure, used for mechanical correction of fine-pitch IC to ensure the mounting accuracy.

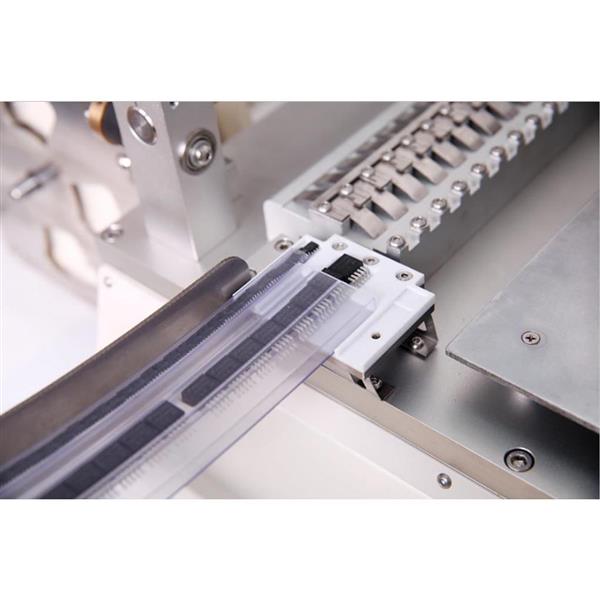

Vibration Feeder device: meet the requirements of mounting different tube packaged IC directly.

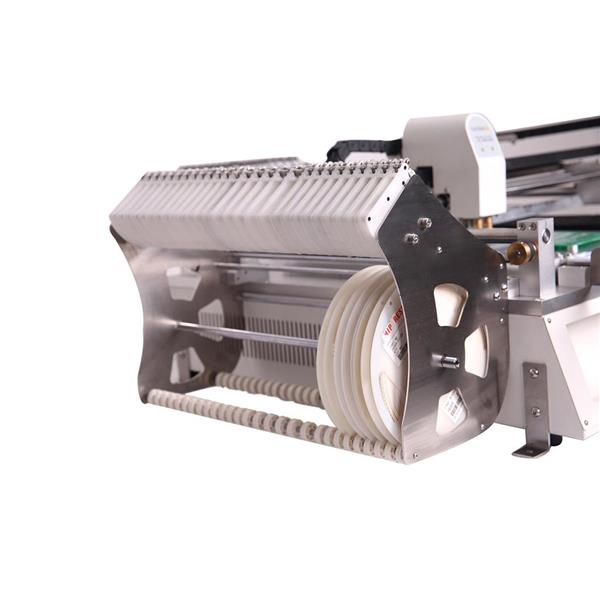

Automatic discharging device with electronic magnetic pressure type gear: patented, each unit is relatively independent and without interference, can peel the wasted nylon film more stable and easier.
PCB positioning device: can meet different demands of PCB board positioning, convenient and quick.
Application industry: Household appliances industry, Auto electronics industry, Power industry, LED industry, security，instruments and meters industry, communications industry, intelligent control industry, Internet of Things（IOT）industry and military industry, etc.
1) Pick and Place Machine TM245P: 1
2) Nozzle: Totally 10(XN03:3 XN07:3 XN14:2 XN22:1 XN75:1)
3) 8G SD Card: 1
4) SD Card reader: 1
5) Nozzle exchange tool: 4
6) Power Cord: 1
7) Nozzle cleaning tool: 1
8) Open-end Wrench: 1
9) Video training course: 1
10) Double Sided Adhesive Tape: 2
11)Allen wrench Set:5
12)Tool Box:1
13)Reel holder stand:1
14)PCB support bar:4
15)PCB support pin:8
16)Needle:4
17)Electromagnet:2
18)Electromagnetic Valve:4
19)Head's Rear Cover:1
20)Electromagnetic actuator,8mm:4
21)Electromagnetic actuator,12mm:2
22)Electromagnetic actuator,16mm:1
23)Vibration Feeder:1
4、Warranty：
The complete machine has a warranty period of 2 year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.Statement:
These images and screenshots in this product manual may very slightly from the actual purchased product. For the more detailed information and technical issues solving, please browse our company website: www.neodentech.com. Welcome consult and download.
