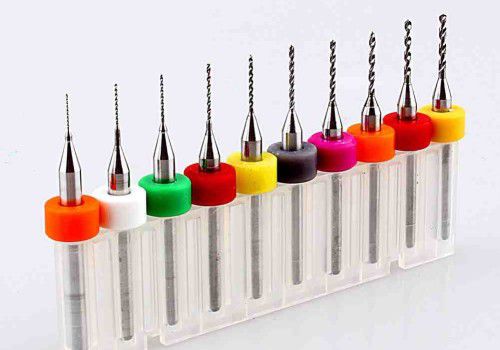

High quality, precisely grinded carbide drill and routing bits. All models have a reinforced shank of 3,175 mm and are equipped with a distance ring. The distance from the tip to the upper side of the ring is 21 mm. The ring has a diameter of 7.5 mm and is labeled or color-coded accosding to the diameter. The tools are packaged in resealable plastic boxes.
| |
 |
|
- Tungsten Carbide Drills For drilling PCBs.
Two flutes, righthand turn. Diameter: 0.3 ... 3.0 mm in 0.1 mm increments
|
|
| |
 |
|
- Contour Routers - RPU Type
For Aluminium routing/milling. Two flutes, upward swarf ejection, fish tail tipped. On-stock diameters: 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0 mm
|
|
| |
|
|
- Contour Routers - SC/FT Type
For PCB routing, spiral shaped teeth, upward swarf ejection, fish tail tipped. On-stock diameters: 0.8, 1.0, 1.3, 1.5, 2.0, 2.5, 3.0 mm
|
|
| |
|
|
For isolation milling under 0.6 mm we offer:
|
|
| |
|
|
- SC FT Router cylindrical:
0.5, 0.4 und 0.3 mm
|
|
| |
 |
|
- Bungard Special isolation milling routers 0.1 and 0.2 mm:
These routers are cylindrical only in the last Millimetre. This way there is less risk of breaking the router. For experienced operators
|
|
| |
|
|
or:
|
|
| |
 |
|
- V-Cut Routers G30°N Type
For Isolation routing and fine engraving, two flutes, 30° tip angle. For Channels of 0.1 – 0.3 mm width (depending on cutting depths).
- Contour Routers G60°N Type
For Isolation routing with or for engraving. Two flutes, 60° tip angle. For Channels of 0.2 – 0.5 mm width (depending on cutting depths).
|
|
| |
High quality, precision tungsten carbide drill and routing bits with 3.175 mm(1/8”)shaft.
All tools have 7.5 mm wide collets with a distance of 21 mm from the tip to the upper side of the collet.
The tools show the diameter or are colour coded and come in re-usable plastic boxes.
Within one class of price, tools with different diameters can be mixed to give one unit of 10pc. |
