Product Details
Application:

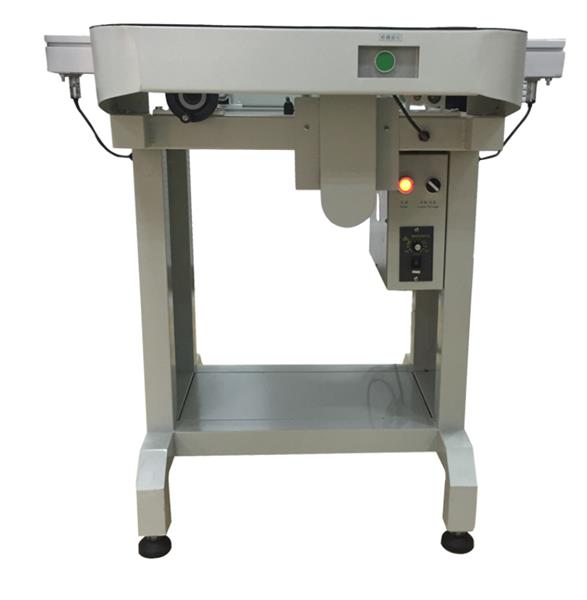

The External PCB conveyor( J-08) is Used for linking PCB equipments together, Visual Inspection stage in the Quality analysis process of any Electronic product development process, or even can use in the Manual PCB assembling or PCB buffering Functions
It could help operator transfer pcb from pick and place machine to oven automatically.
And operator can press pause to stop the transportation for PCB placement checking before soldering.
Features:

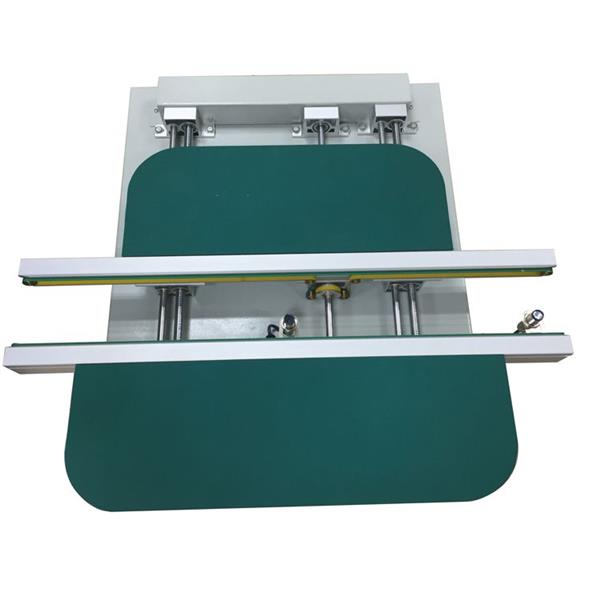

1.precise adjustment of width
2.smooth running, PCB won`t be stuck.
3.speed adjustable
Parameter
|
Power supply
|
Single Phase 220V 50/60HZ 100W
|
|
Conveyor Length
|
80 cm
|
|
Conveying Belt
|
ESD belt
|
|
Conveying speed
|
0.5 to 400mm/min
|
Specification
|
Packing Size (cm)
|
87*72*24
|
|
PCB available width (mm)
|
30-300
|
|
PCB available length (mm)
|
50-320
|
|
G.W. (kg)
|
49
|
Package: Wooden case
Our products are sold to worldwide.
We support DHL/TNT/UPS/FEDEX/EMS or customer appoint
Our main payment is 100% T/T in advance before shipping,we will inform you the shipping details after we shipped the goods.
Warranty
The machine has a warranty period of 1year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.
